8-Port PoE Ethernet Surge Protector & Lightning Arrester, Rack-Mount Panel
Sale price
$79.95
Regular price $395.95
Skip to product information
8-Port PoE Ethernet Surge Protector & Lightning Arrester, Rack-Mount Panel
Sale price
$79.95
Regular price $395.95

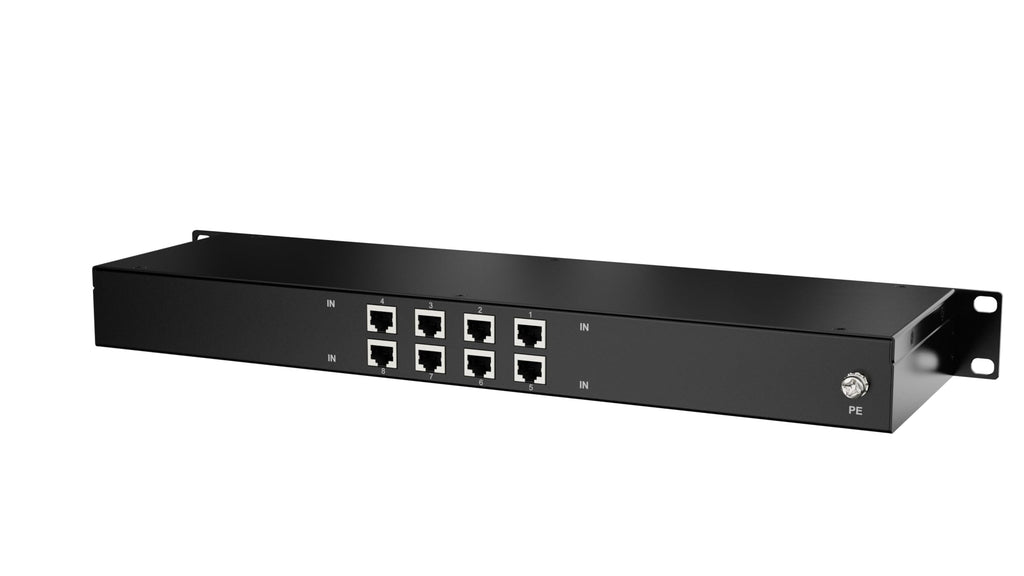

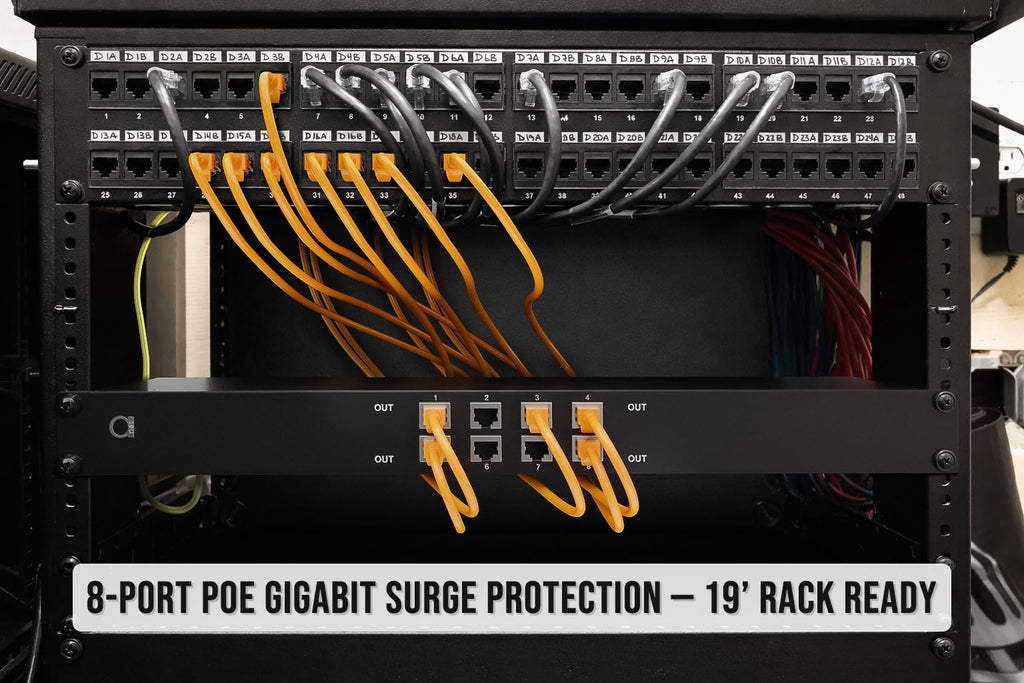

- Protect up to 8 Gigabit PoE Ethernet lines from surge and lightning damage with one 1U 19-inch rack mount RJ45 surge protector. Designed for CCTV racks, PoE camera systems, network cabinets, telecom rooms, and industrial Ethernet installations.

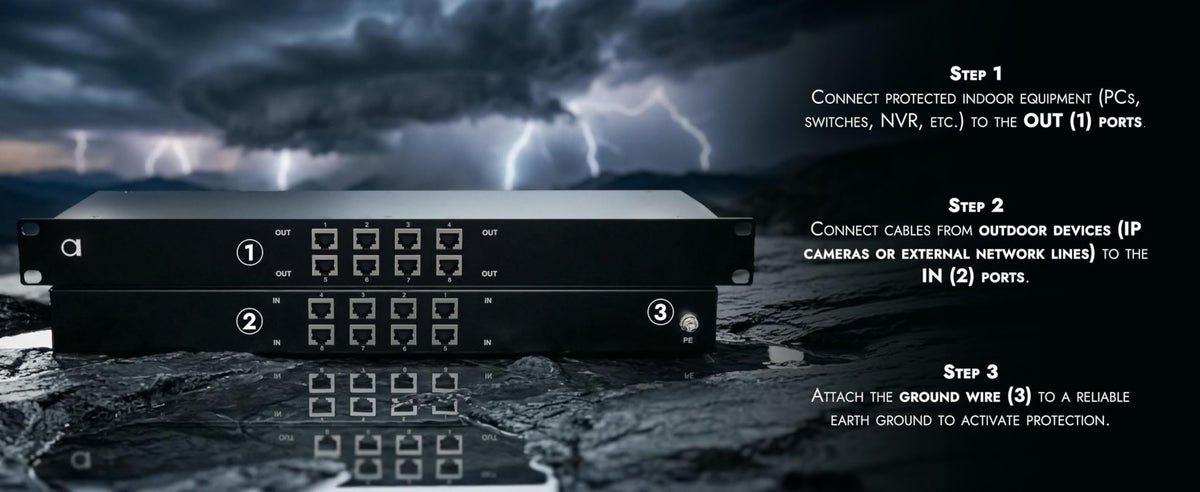

- Connect outdoor or exposed Ethernet lines to the IN ports, then connect switches, NVRs, routers, PCs, or other protected equipment to the OUT ports. Clear IN/OUT separation helps route surge risk away from your core network equipment.
- Supports 10/100/1000Mbps Ethernet and PoE power/data pass-through over RJ45, protecting both network signal and PoE power pairs. Suitable for IP cameras, access points, PoE switches, and other copper Ethernet runs.
- For surge protection to work correctly, connect the PE grounding terminal to a rack grounding bar, building earth ground, or proper grounding system. A low-resistance ground path helps divert surge energy safely away from connected equipment.
- Rated for 10kV lightning protection, 5kA maximum discharge current, >2000 surge events at 0.5kA, ≤0.2dB insertion loss, and -40°C to +80°C operation for demanding network environments.
- Designed with low insertion loss (≤0.2dB) to maintain stable Gigabit data transmission and PoE delivery without interrupting your network. Works inline with existing setups—camera, switch, and router continue operating normally while protected.
