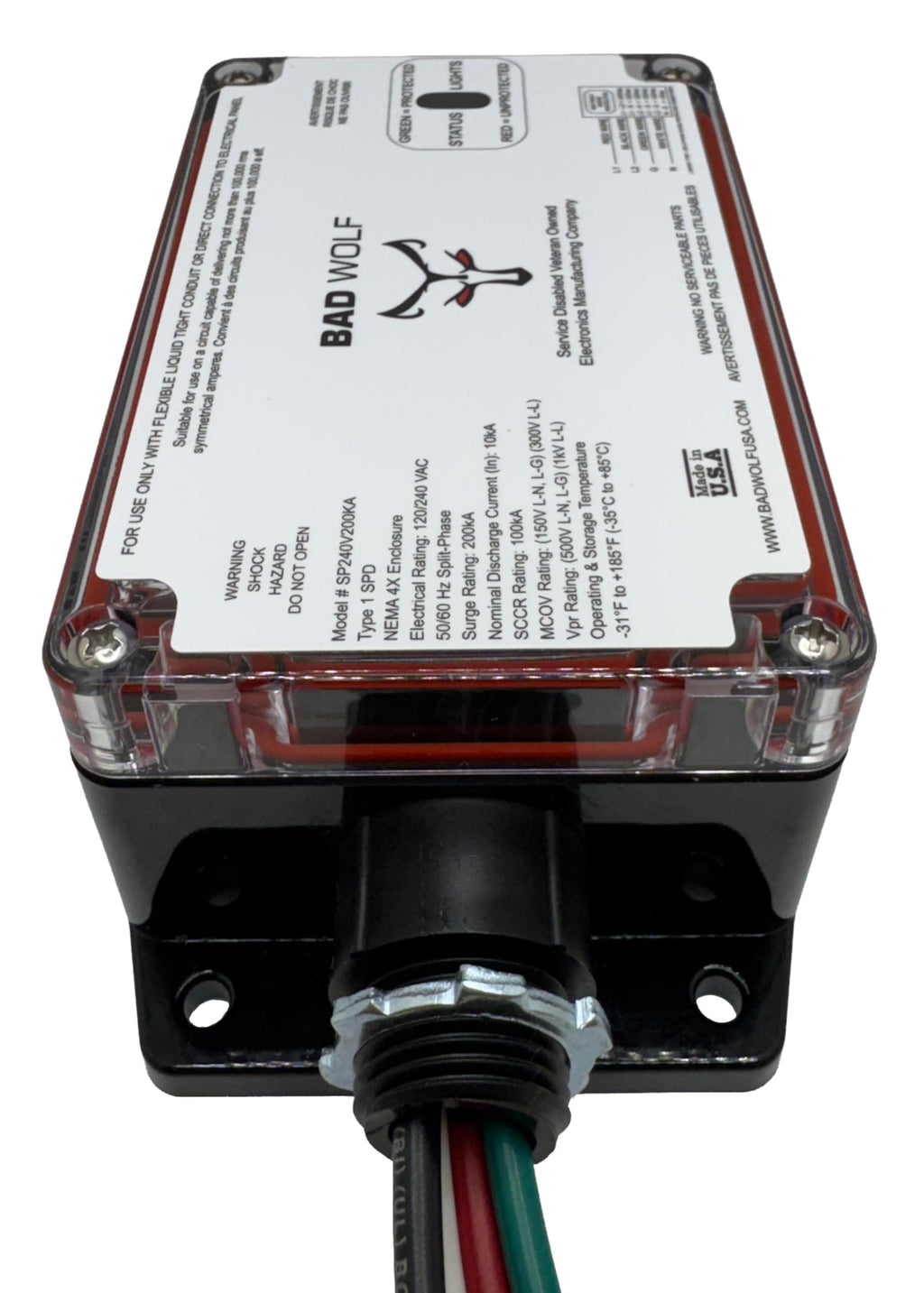

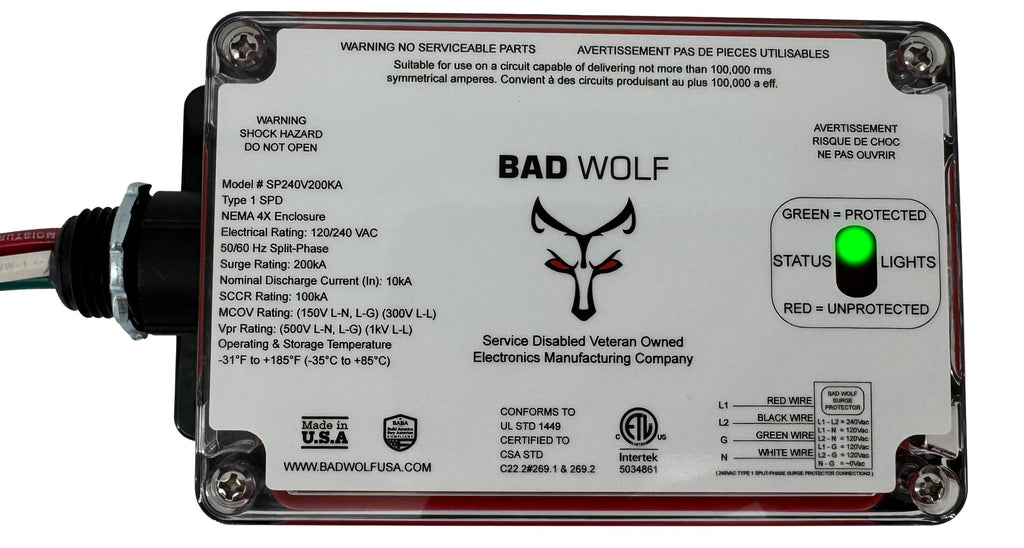

Bad Wolf SP240V200KA-A Made in USA 200kA Type 1 Direct Panel Mount SPD
Sale price
$49.95
Regular price $249.95
Skip to product information
Bad Wolf SP240V200KA-A Made in USA 200kA Type 1 Direct Panel Mount SPD
Sale price
$49.95
Regular price $249.95
- Direct Panel Mount Design: Built-in 1/2-inch NPT male side-mount fitting installs directly through a standard 1/2-inch knockout in a compatible electrical panel, disconnect, service enclosure, or equipment enclosure.
- Heavy-Duty Whole-House Protection: Designed for compatible 120/240VAC split-phase residential, commercial, and light-industrial electrical systems.
- 200kA Surge Current Capacity: High-capacity Type 1 surge protective device helps reduce the risk of damage from lightning-related surges, utility switching, load switching, and other voltage transients.
- Six-Mode Protection: Provides protection across L1-L2, L1-N, L2-N, L1-G, L2-G, and N-G for comprehensive split-phase panel protection.
- Four-Wire L1/L2/N/G Connection: Pre-wired with 36-inch 10 AWG leads—red and black for Line 1 and Line 2, white for neutral, and green for equipment ground.
- Green and Red Status Indicators: Green indicates protected and normal operation; red indicates that the surge protector has been damaged and should be replaced.
- Indoor or Outdoor Installation: Rugged NEMA 4X/IP67 enclosure helps protect the internal components from rain, dust, moisture, and demanding installation environments.
